Xtrakt™ Mini

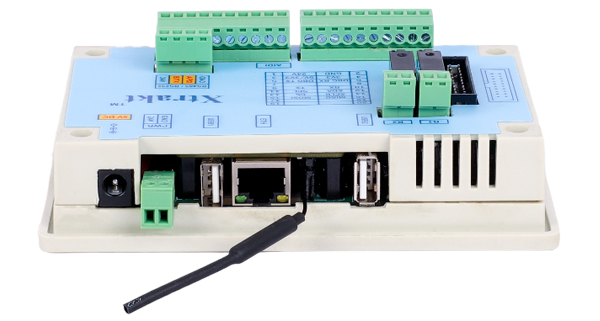

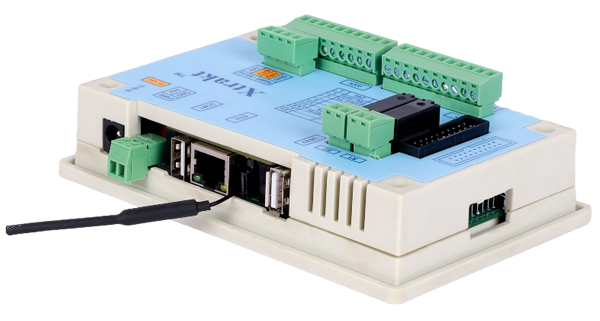

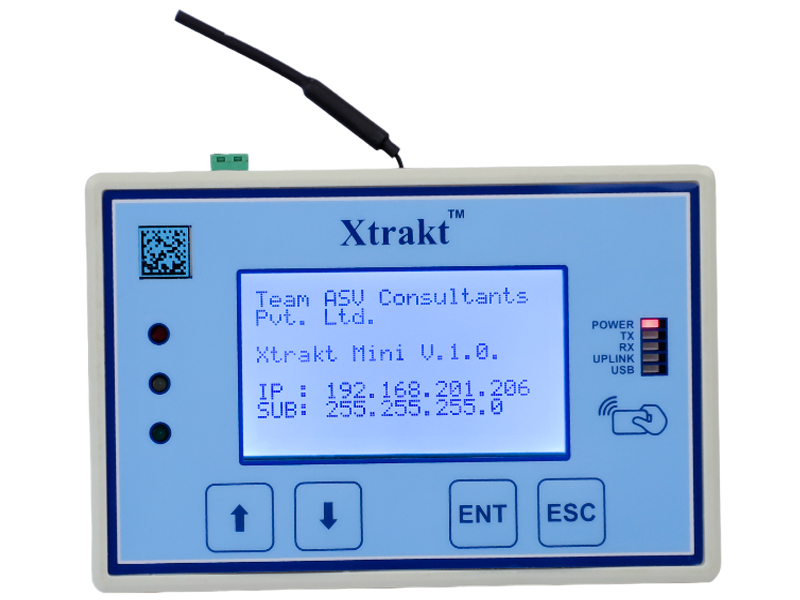

Xtrakt™ Mini Images
Technical Details:
- 24V supply
- Linux OS (headless with SSH)
- 100 Mbps Ethernet
- 3.2-inch 128×64 Monochrome Display
- 8x AI/DI
- 8x DO (6 24V NPN, 2 relay)
- 4 x 1 keypad
- 2 x USB
- 1x RS485/RS232
- Inbuilt RTC – maintains time without internet
- Store and forward available
- Fingerprint scanner/RFID optional
- Panel mountable
- Dimensions: 143 x 94 x 31
